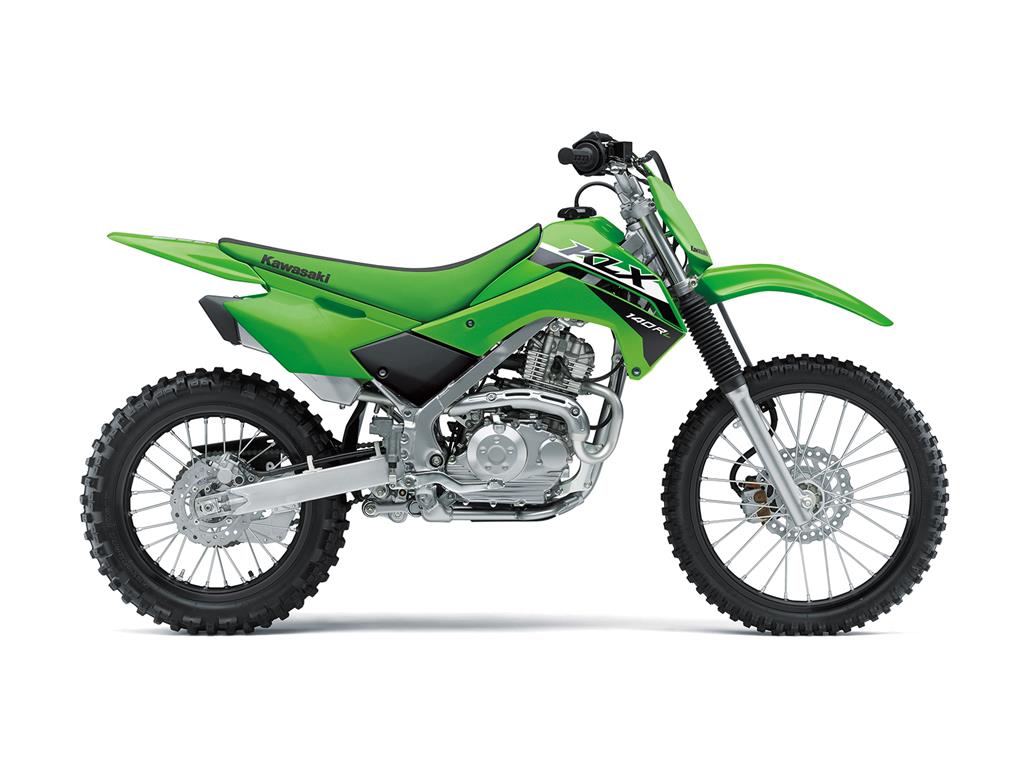

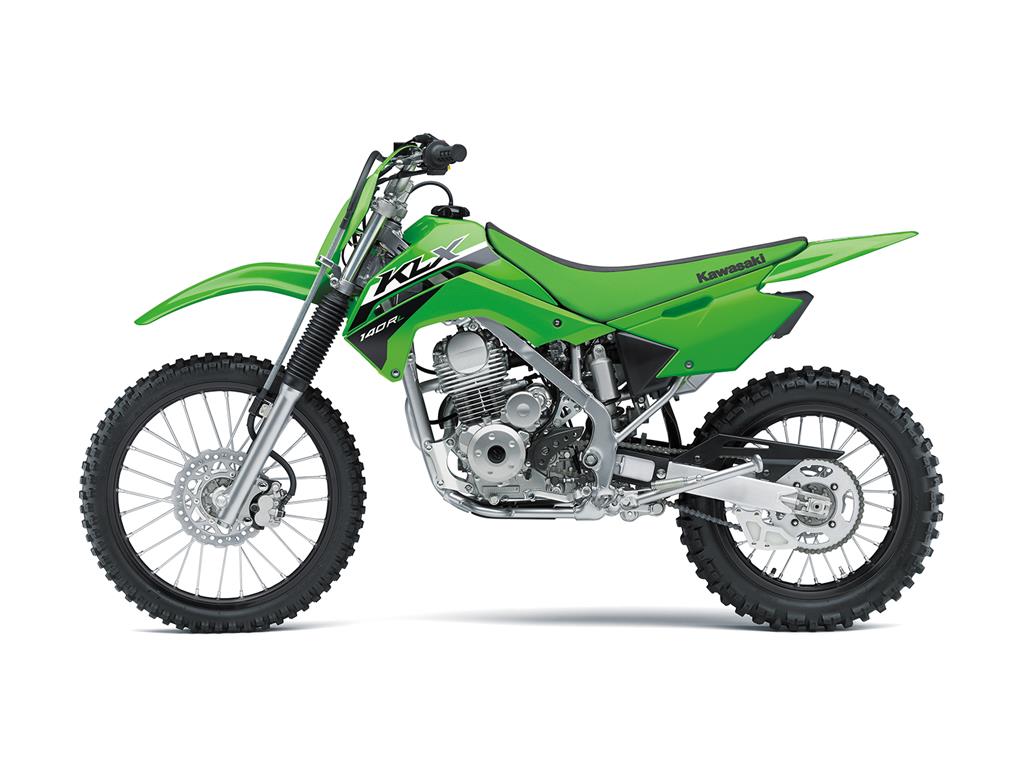

Featuring confident handling, KLX140R motorcycles are the ideal entry into off-road riding. The easy-to-ride KLX140R lineup offers a 144cc engine, plush suspension, and push button electric start, making for great trailblazers.
| Displacement | 144cc |
| Engine type | Air-cooled, 4-stroke Single |
| Bore x stroke | 58 x 54.4 mm |
| Compression ratio | 9.5:1 |
| Valve/Induction system | SOHC, 2 valves |
| Fuel system | Carburettor, PB20 (Keihin) |
| Ignition | Digital DC-CDI |
| Starting | Electric starter |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 5-speed |
| Final Drive | Chain |
| Primary reduction ratio | 2.880 (72/25) |
| Gear ratios: 1st | 2.667 (40/15) |
| Gear ratios: 2nd | 1.895 (36/19) |
| Gear ratios: 3rd | 1.474 (28/19) |
| Gear ratios: 4th | 1.182 (26/22) |
| Final reduction ratio | 3.923 (51/13) |
| Clutch | Wet multi-disc |
| Wheel travel - front | 180mm |
| Wheel travel - rear | 180mm |
| Tyre - front | 70/100-19 42M |
| Tyre - rear | 90/100-16 52M |
| Steering angle - left / right | 45 / 45 |
| Dimensions (L x W x H) | 1,895 x 790 x 1,075 mm |
| Wheelbase | 1,285 mm |
| Ground Clearance | 255mm |
| Seat height | 800mm |
| Fuel capacity | 5.8 Litres |
| Curb Mass | 95kg |
